ANGULAR GRINDING MACHINE
Angular grinding machine is usually used in order to grind by making grinding wheel stroked diagonally to the object. It is needed why the regular cylindrical grinding machine cannot grind the section of the object or cannot simultaneously grind section and circumference of the object.

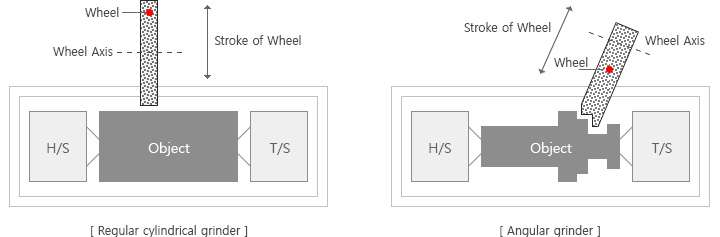

Regular cylindrical grinder : Grind only circumference surface by perpendicular wheel stroke
Angular grinder : Grind both circumference and section surface by diagonal wheel stroke
Angular grinder : Grind both circumference and section surface by diagonal wheel stroke
Therefore, for more accurate process, the angular grinding machine must be designed very precisely in order to enable wheel to stroke to the object with certain angle from z-axis, thus high technical design experiences and considerations are necessary.

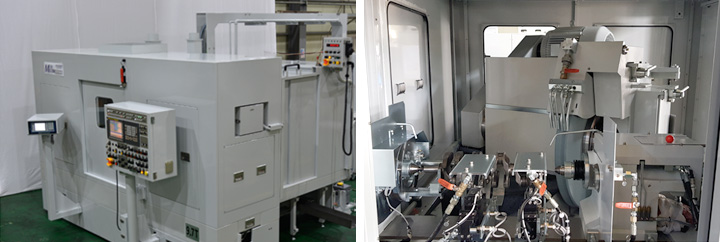

The angular grinding machine which is ensouled by CHEIL, used to be fabricated as usage of processing intricate figure of essentials of internal combustion engine which need high precision. The constant R&D of CHEIL itself, causes the capability of flexible design, thus CHEIL can provide all of technical corresponding from designing, making accessories and try-out to after-service.
CHEIL’s angular grinding machine realizes supreme performance, durability, and quality of the object comparing to other maker’s, of course can provide more immediate and economical solution for after-service, model change of the object, and against accidents from abuses or improper uses.
